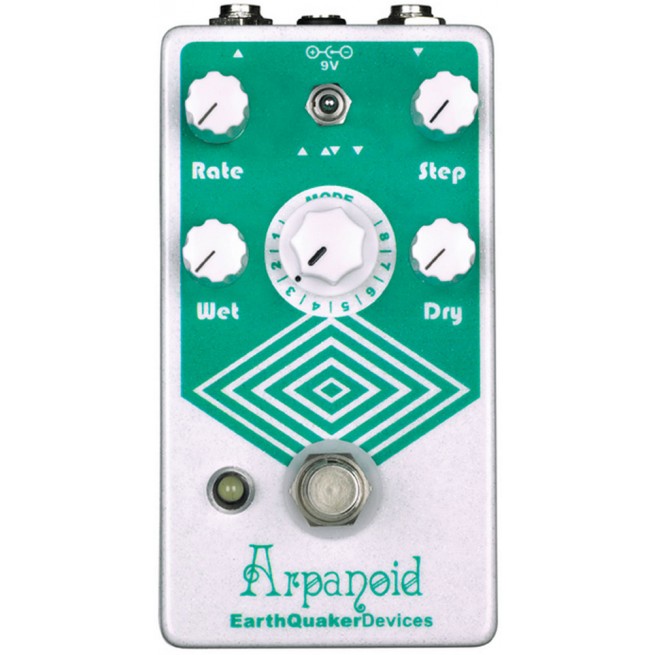

Earthquaker Devices Arpanoid

The first dedicated compact polyphonic pitch arpeggiator effect pedal for electrical guitar! What does the Arpanoid do? The Arpanoid takes whatever you play and transforms it into an adjustable ascending or descending scale. It features 8 intuitive and expandable modes and will work on complex chords as well as single notes in any key. The Arpanoid has an all analog dry signal, all digital wet signal and true bypass switching.

Controls

Wet- Level control for the effect signal. Unity is around noon.

Dry- Level control for the dry signal. Unity is around noon.

Rate- Adjusts the speed of the sequence.

Step- Selects how many notes there are in the sequence which determines the overall feel and timing.

Toggle Switch- Controls the direction of the sequence. All the way left is up, the sequence will continually repeat going up. In the middle is up/down, the sequence will continually repeat going up then back down. All the way right is down, the signal will continually repeat going down.

Mode-- 8 position selector switch to choose the octave and key:
1: Major: -1 octave to root.
2: Major: root to +1 octave.
3: Major: -1 octave through +1
4: Major: Random pattern
5: Minor: -1 octave to root.
6: Minor: root to +1 octave.
7: Minor: -1 octave through +1
8: Minor: Random pattern

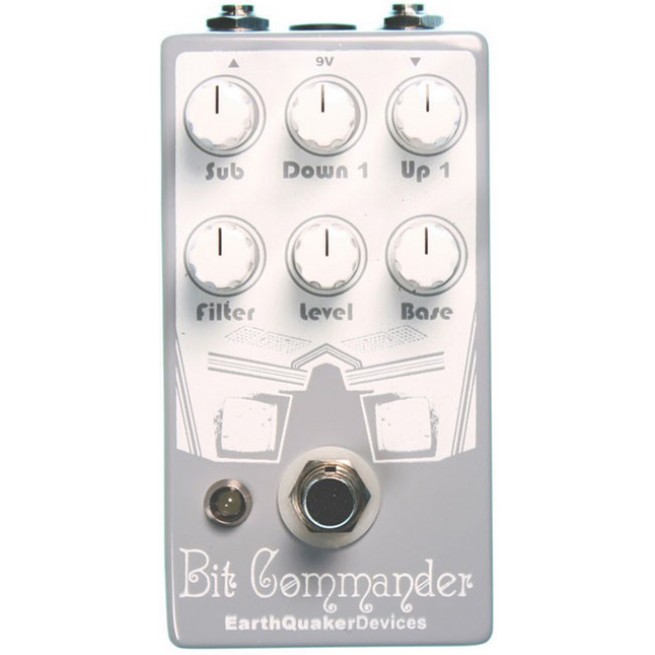

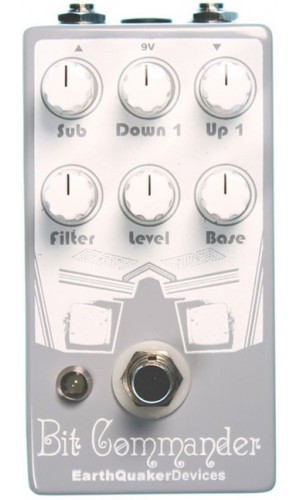

Earthquaker Devices Bit Commander

Synthesizer

The Bit Commander is a monophonic analog guitar synthesizer with four octaves of vintage square wave synth tones. It’s no-nonsense interface makes it easy to add or subtract octaves to create a wide variety of sounds without having to dial in envelopes or oscillators. Ripping sub-octave thump, pulsing octave down, a lightly squared base tone and a swelling transformer based octave up all join together to make a single guitar sound like an army of olde tyme synths.

Like all analog octave effects, there are some basic rules to follow that will get you the most enjoyment from your Bit Commander. Use the neck pickup and play single notes. The best tracking occurs from the 7th fret up on all the strings. Below the 7th will still track but there will be occasional glitches and stutters. The lower the note, the harder it is for the Bit Commander to register. The use of Bass and lower registers on keyboards will yield unexpected, sometimes pleasing, sometimes disgusting results. These are not mistakes or flaws, it is the nature of analog octaves.

Controls

-Sub: Two octaves down level
-Down 1: One octave down level
-Up 1: One octave up level
-Base: Squared input signal level
-Level: Master volume
-Filter: Tone control, more highs clockwise, more warmth counter clockwise

Analog, true bypass and hand made one at a time in the republic of Akron Ohio.

Earthquaker Devices Crimson Drive

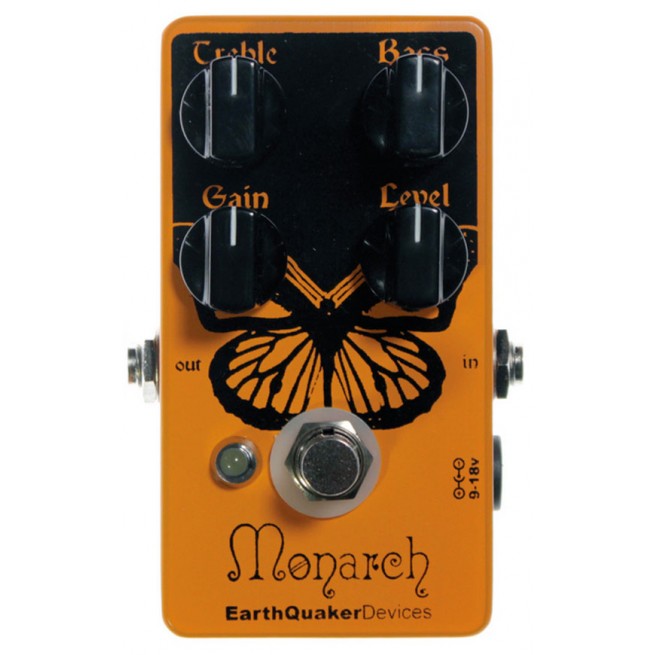

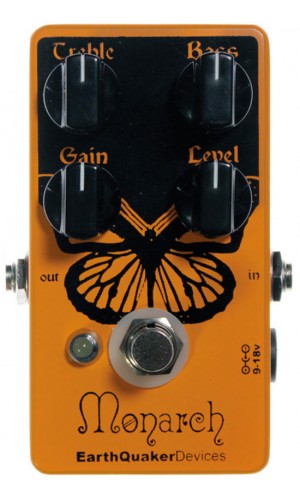

The Monarch Overdrive is an all discrete, FET-based dirt machine. It’s designed around the input stage of a vintage amp produced by a company that bears the same name as the color of the monarch (hint…). It has been configured to produce higher gains that sound very open and free of unnatural compression. The Monarch gives big bottom end with a snappy, bright top at all gain ranges with some careful tuning of the treble and bass controls. The treble and bass controls function as frequency boosters, not the traditional roll off filters in most overdrives. They are located in the preamp section and have a large impact on the over all tone, nature and distortion characteristics. If you are looking for an overdrive for big fat chords with excellent low end retention, this is it! And, yes, it’s true bypass and handmade with sweet loving care in Akron, Ohio.

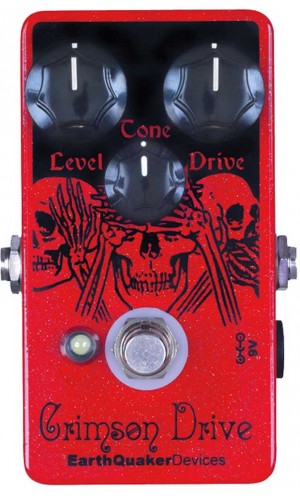

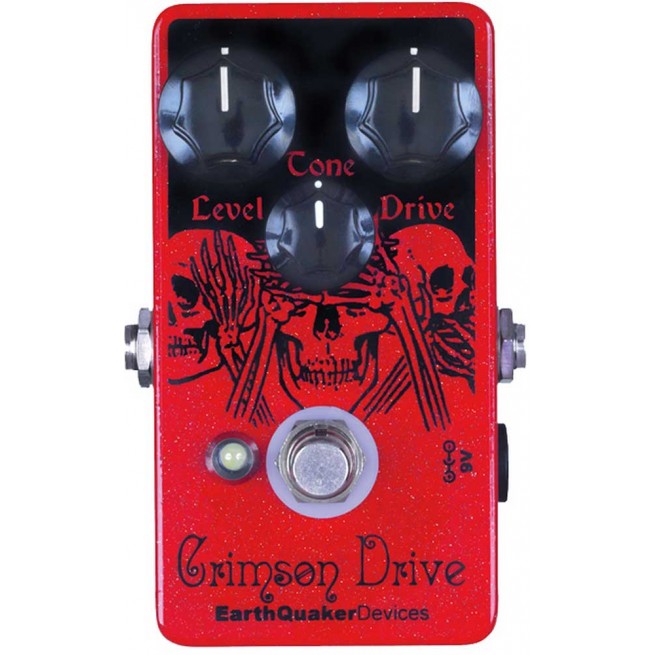

Earthquaker Devices Crimson Drive

The Crimson Drive is a cutting and dynamic overdrive designed around a single germanium transistor and vintage germanium diodes. It creates a very open tone with excellent harmonics and a pleasing raw grit that can’t be duplicated with more common FET or opamp based overdrives. With a simple twist of the gain control, the Crimson Drive can go from a gritty Rangemaster style treble boost to a rattling overdriven sound that is reminiscent a vintage plexi style amp at full bore. Works great with single coils as well as humbuckers and has excellent clean up with your guitars volume control.

True Bypass and Handmade with sweet loving care in Akron, Ohio.

Controls

- Drive: Controls the amount of gain
- Tone: Rolls off high end by turning counter clockwise
- Level: Controls the output

Earthquaker Devices Disaster Transport SR

The Disaster Transport Sr is a dual delay with reverb and modulation. It was designed from the ground up to create an intense wash of lo-fi swirling tape styled echo. While it may look intimidating at first glance, it’s actually pretty easy to navigate. The top row of controls are for delay A and the bottom row of controls are for delay B. Delay A is a 600ms delay with modulation and delay B is a 300ms delay with reverb. Both delays can be run separately, in parallel, in series or in series/parallel. To take it one step further, there are also expression controls for the repeats on delay A as well as bleeding delay A into delay B. The switching was designed so each delay can be used individually or in tandem with both true bypass or trails.

In addition to being used as a straight delay, straight reverb, rhythmic delay, modulated delay and old school tape-style echo, the Disaster Transport SR can also be used to create a wide variety of wild sounds ranging from warped records, clanging flange, smooth chorus, echoed out squalls and various other-worldly effects that will blow your mind, man. If you are a fan of old school tape delay and crazy lo-fi sounds, you will get hours of enjoyment every time you plug into the Disaster Transport Sr.

Hand made one at a time in sunny Akron, Ohio USA.

Earthquaker Devices Dispatch Master

Delay and Reverb

Dispatch Master featured on PremierGuitar.com, recieves Premier Gear award: Read all about it!

The smaller and more modern answer to our well loved limited run Ghost Disaster from 2010! The Dispatch Master is a digital delay and reverb unit with an all analog direct signal path and true bypass switching. It is capable of producing nearly 2 seconds of delay time with near-infinite repeats and a cavernous reverb. Both effects can be run separately or in unison. Even though it is a DSP based effect, the sound is warm and full. No sterile lifeless tones here! The delay signal is clear and strong with no after effects or signal degradation and the repeats decay into a nice ambient swell with no oscillation. The reverb is MASSIVE and is sure to please those who love our Ghost Echo but want more depth and less artifacts. The perfect “Black Hole Ambience Generator”!

Controls

-Time: Controls the delay time, from 0ms to nearly 2000ms
-Repeats: Controls the regeneration of the delayed signal. Also acts as a enhancer for the reverb. In reverb mode this will control the thickness, decay, depth and overall nature of the reverb.
-Reverb: Controls the reverb mix
-Mix: Controls the over all level of the effected signal

To use as a reverb only, turn the time control all the way down and adjust the reverb and mix controls to taste. In this mode, the repeats control can be used to enhance the thickness, decay, depth and overall nature of the reverb. With the reverb control at it’s maximum setting, the repeats control will gradually overload the effect at higher settings.

To use as a delay only, turn the reverb control all the way down and adjust the time, repeats and mix controls to taste.

To use both effects in unison, adjust all controls to taste. True bypass and hand made one at a time in landlocked Akron, Ohio.

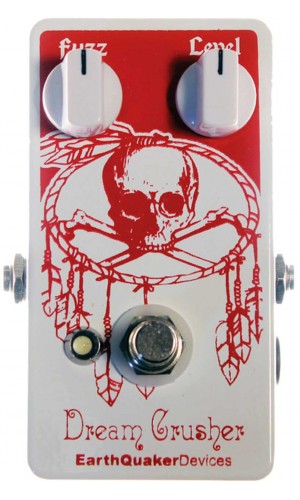

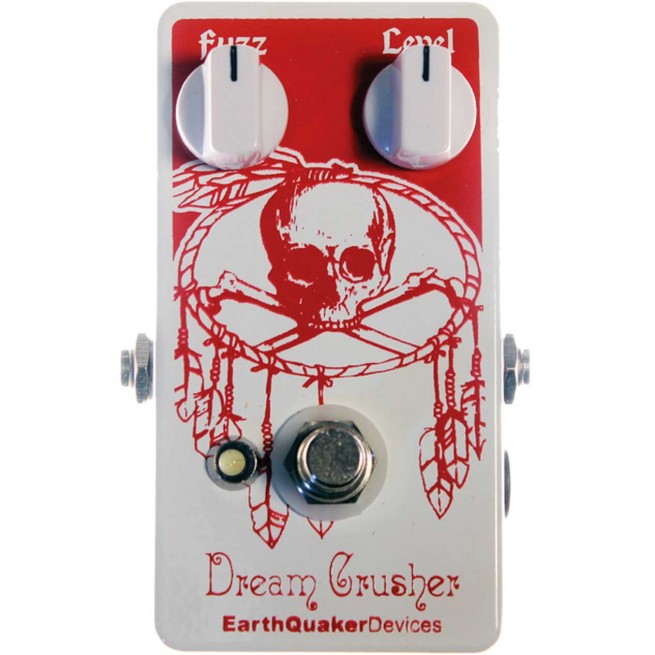

Earthquaker Devices Dream Crusher

The Dream Crusher is a germanium powered fuzz device based on the classic Fuzz Face design. With it’s 2 NOS transistors, it produces a wide range of dynamic and touch sensitive fuzz tones with versatility rarely found in similar fuzz devices. It works equally well with both single coils and humbuckers and has excellent clean up capability by rolling back on the guitars volume control. Everything from light overdrive to crushing, blown-out grind can be achieved with this device!

Controls

-Fuzz: Controls the dirt and character
-Level: Controls the output -Tone

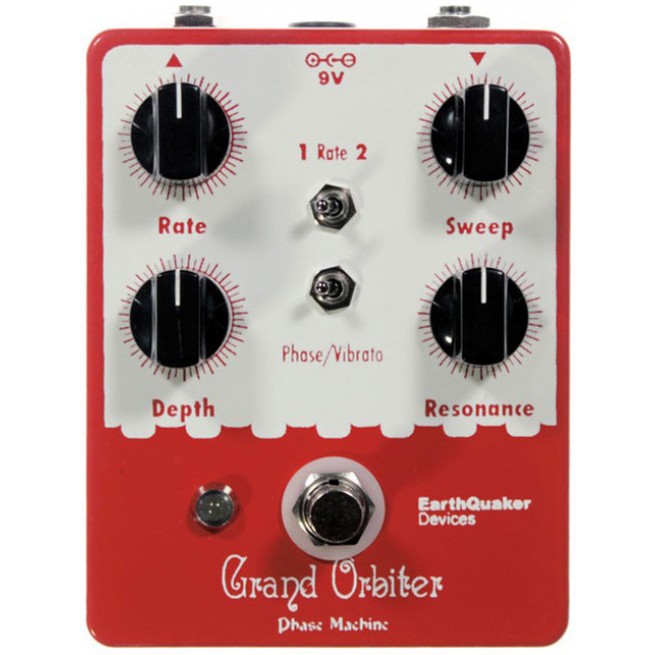

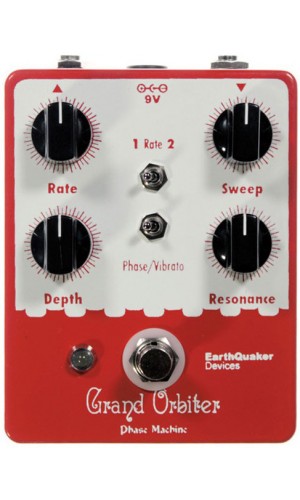

Earthquaker Devices Grand Orbiter

Phase Machine

4 stage OTA Based phaser ala the Ross Phaser and DOD 490 (Circuit is loosely based on both of these). Two LFO speeds that can go from painfully slow to ridiculously fast. Dry kill switch to get vibe/vibrato effect, depending on where the controls are set. Rate controls the speed of the LFO, extremely wide range in conjunction with the two mode switch. Depth controls the amount of phase shift mixed with the dry signal (not how the LFO shifts the filters) so you can get very subtle pseudo 2 stage through full on. Sweep controls the frequency range and resonance controls the regeneration which makes the effect more or less intense. The sweep and resonance have a large range and you can dial in classic subtle tones through over the top phasing.

* There is no audible difference between the Grand Orbiter pictured and the previous silver box version.

Controls

-Depth: Controls the amount of phase effect mixed with dry signal. When “dry” switch is in the off position, this should remain at max.
-Rate: Controls the speed of the LFO
-Sweep: Controls the Frequency range
-Resonance: Controls the regeneration of the phasing.
-Rate 1+2: Changes the range of the speed control. 1 is slower, 2 is faster.
-Dry: Cuts the dry signal to create a vibe/vibrato effect depending on the setting of the other controls. Vibrato is created by turning the rrsonance down low.

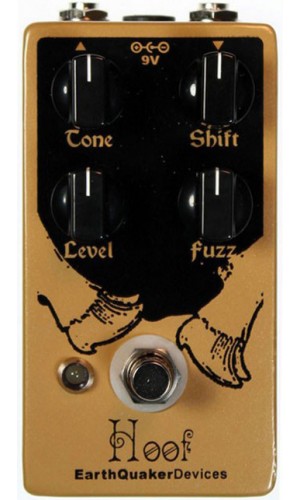

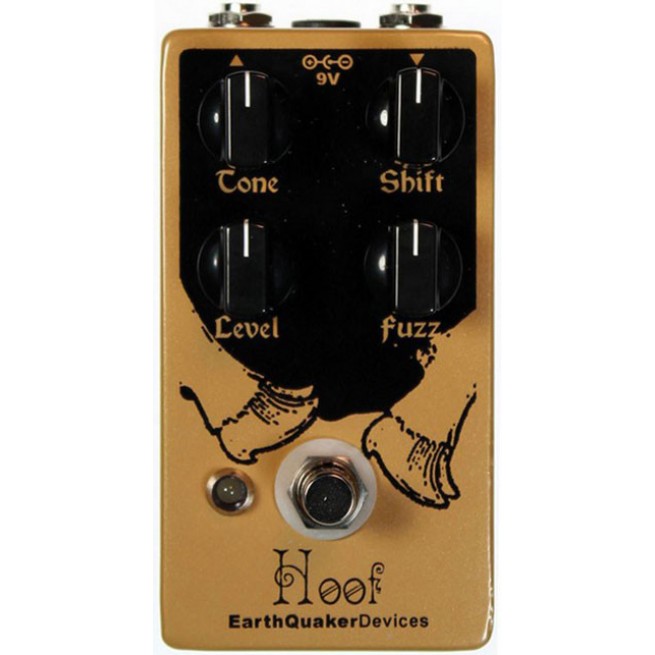

Earthquaker Devices Hoof Fuzz

Fuzz

The Hoof is a no-fuss, easy to use device capable of sounds from warm, gritty overdrive to a huge sustaining fuzz. It’s a germanium/silicon hybrid muff style fuzz (based on the old green russian muff) with massive amounts of volume on tap and smooth amp-like sustain. It has a tighter, cleaner sound than most muff’s which makes it more cutting and discernible in a band setting. The shift control changes the frequency response of the tone control, mainly on the treble side (but takes out the mud on the bass side). Clockwise scoops the mids and counterclockwise enhances the mids. When the shift control is set dead center it has roughly the same frequency response as the original 3 knob hoof (almost flat).

* There is no audible difference between the hoof pictured and the previous gold box version. The circuit is EXACTLY the same.

Controls

-Fuzz
-Tone
-Level
-Shift (mids)

Analog, true bypass and hand made one at a time in the republic of Akron Ohio.

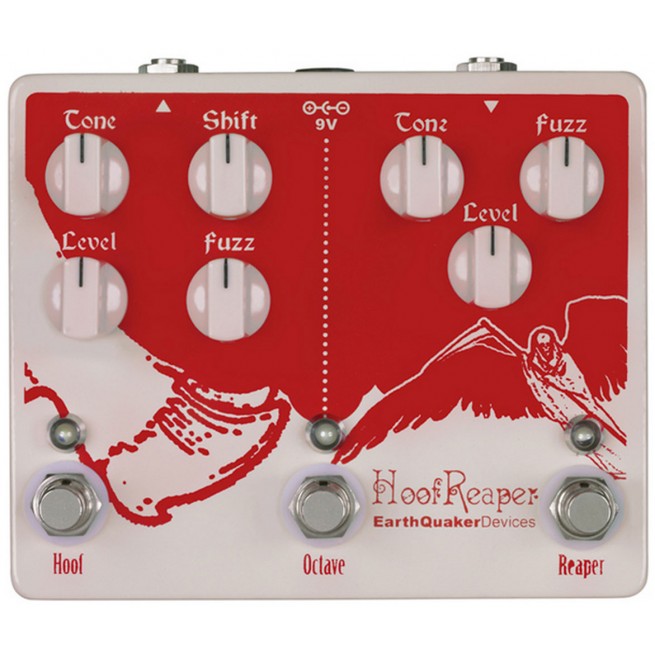

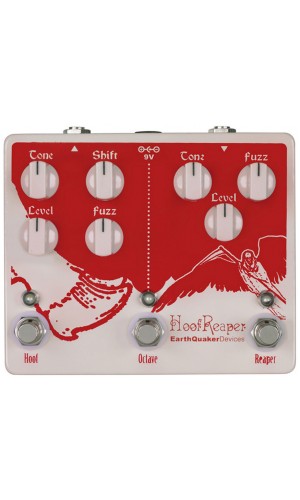

Earthquaker Devices Hoof Reaper Octave

The Hoof Reaper features our popular Hoof and Tone Reaper fuzz pedals in one handy enclosure with the added bonus of an old school analog octave up. It was originally released as a special limited run item back in 2010 and demand was so high that we decided to reintroduce it back into our line. Capable of creating everything from subtle octave-up overtones through crushing octave squalls that simulate exploding stacks of amps. Each effect can be used individually as well as in series but the order of effects is preset for optimum performance.

Available switching combos:
Hoof Alone
Reaper Alone
Octave Alone
Reaper + Octave
Hoof + Octave
Hoof + Reaper
Hoof + Reaper + Octave

Use the individual switches to activate the level of mayhem you wish to unleash.

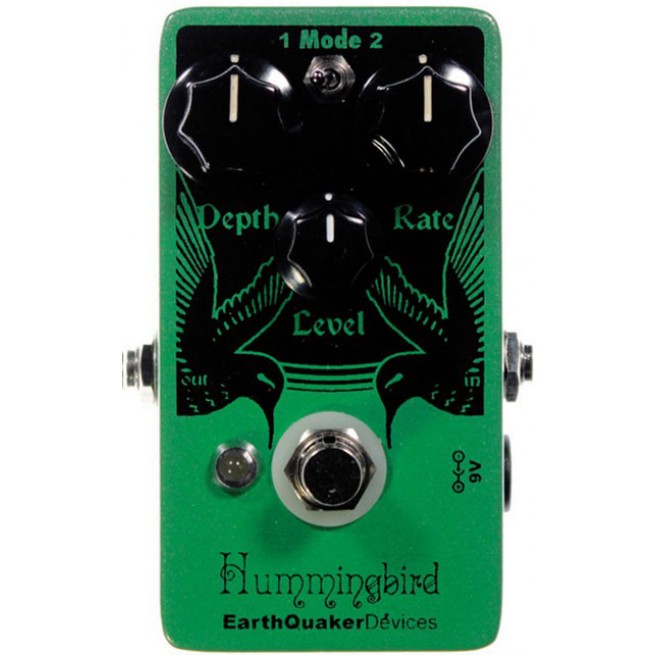

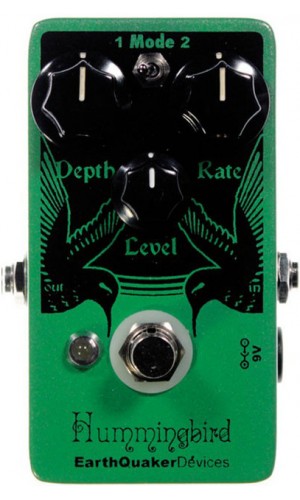

Earthquaker Devices Hummingbird

Repeat Percussions

The Hummingbird is, at heart, a hard and choppy tremolo. What comes out is more akin to vintage synth style oscillations. It’s core is based on the old Vox Repeat Percussion with several updates to reduce noise, enhance the “chop” and add more control. It can create ring mod-like octaves, slow pulses, ping pong delay-like stutters, light blipping through machine gun stutter tremolo and many more wacky sounds!

Controls

-Depth: Controls amount of modulation from barely there to full signal chop.
-Rate: Controls the speed of the LFO
-Level: controls the input/output level
-Mode: fast/slow switch for LFO rate

Analog, true bypass and hand made one at a time in the republic of Akron Ohio.

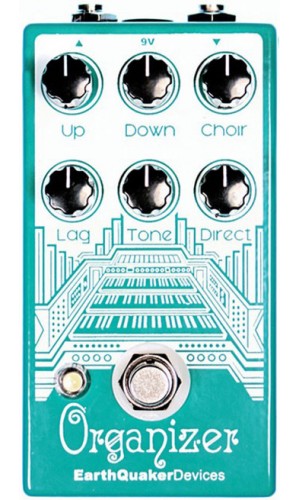

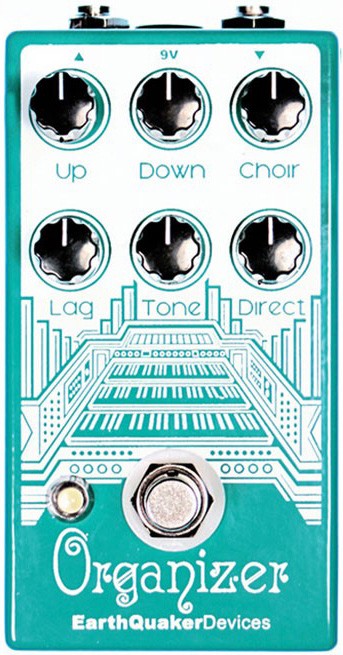

Earthquaker Devices Organizer

Polyphonic Organ Emulator

The Organizer is a polyphonic organ emulator designed to mimic the organ tones of yesteryear crossed with the highly unique “Guitorgan”. The organizer has a warm and very analog feel with a hint of Leslie warble that is unlike other modern octave shifters. It tracks all over the neck on both guitar and bass and will transpose single notes as well as chords. The Organizer uses a mix of analog and DSP circuitry with true bypass switching and an all analog direct (dry) signal path.

Controls

-Up: Level control for the octave up.
-Down: Level control for the octave down.
-Choir: This control takes a mix of the octave up and octave down setting and regenerates it. The end result is an additional 2 octaves up, 2 octaves down and direct signal with a slight delay that adds a “church organ” like feel. This control only works if the octave up and octave down are in use.
-Direct: Level control for the analog dry signal.
-Tone: Low pass filter for the wet signal, counter clockwise rolls off the high end.
-Lag: Delay control for the wet signal. Full counter clockwise is minimal delay, delay time increases as it rotates clockwise.

Analog, true bypass and hand made one at a time in the republic of Akron Ohio.

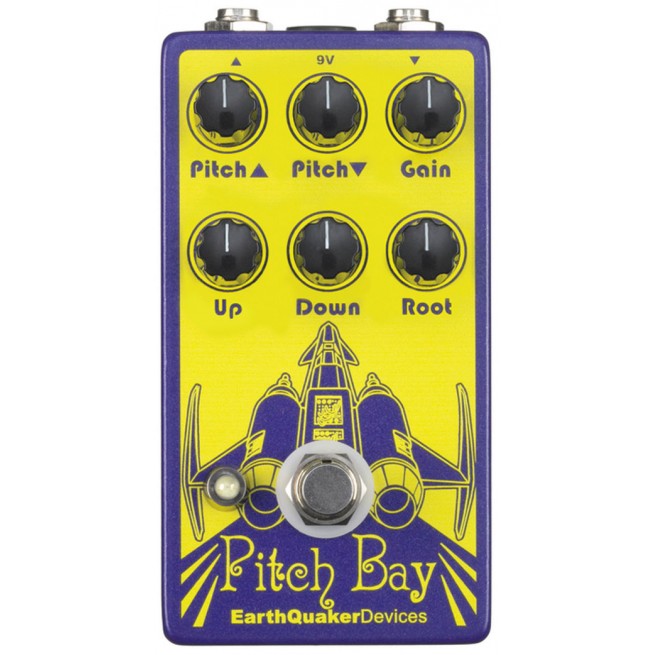

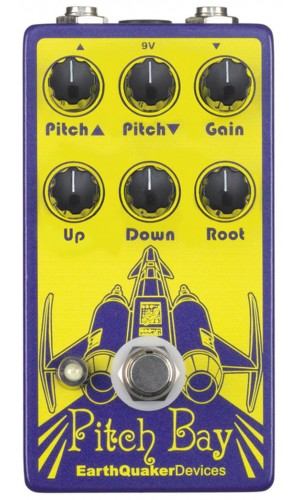

Earthquaker Devices Pitch Bay

Dirty Polyphonic Harmonizer

The Pitch Bay is a three part polyphonic harmonizer and distortion generator in one compact enclosure. It features two voices of adjustable polyphonic pitch shifting, one above the root and one below. Each voice can be adjusted by stepped semitones, from 1 semitone to 12 semitones (one full octave) above and below the root. Each voice (Pitch up, Pitch down and Root) has an adjustable mix control so they can be blended, cut or boosted to your hearts desire. The Pitch Bay also features an adjustable input gain that goes from clean to heavily distorted to unleash your inner hesher. This device has an all analog adjustable gain preamp, all analog signal path for the root, all digital pitch shifting engine and true bypass switching for activation. Each Pitch Bay is made one at a time by hand in the private beach front resort sector of Akron Ohio.

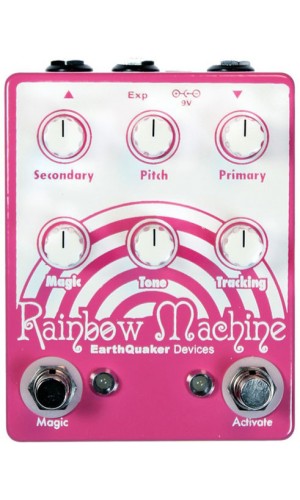

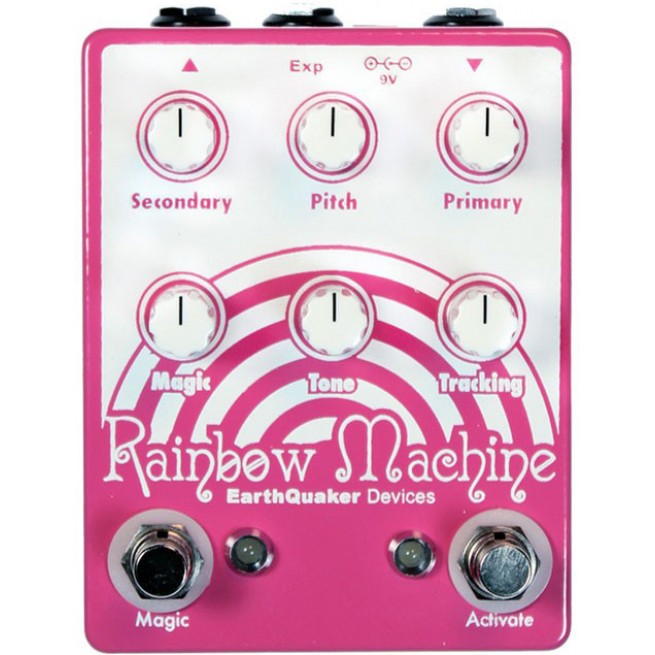

Earthquaker Devices Rainbow Machine

Polyphonic Pitch Shifting/Harmonizing/Alien Aliasing Modulation Generator

Welcome to the Rainbow Machine, in all its synthetic glory! This one is for experimenters, adventurists and noisemakers. Totally not for purists and/or tone hounds, there are no “natural sounds” that will come from this box. It takes modern DSP and uses it as a tool of future past to create real time pitch shifting using digital oscillators. The sound is much different than most modern day pitch shifting devices. It was imagineered to be wild and out of control and slightly imperfect while still tracking up and down the guitar neck without glitching out. A cold digital beast made to pretend it has feelings. It will do basic polyphonic harmonies from a 4th down through a 3rd up and every atonal pitch in between. You may add in an accompanying octave to the harmony by bringing up the Secondary function control. You can take it way beyond and open up your third eye by bringing in the Magic. The Magic is the heart of the Rainbow Machine. In conjunction with the Tracking control, the Magic creates wild pitch take offs and descend’s, chaos chorusing, shrieks, pixie trails and wealth of other general mayhem inducing noises. The pitch can be controled by an external expression pedal for extra fun! The Rainbow Machine can be used on bass, keys, vocals or anything else you can dream up!

Expression Pedal

We recommend the Moog Expression pedal for the Rainbow Machine and can not gaurantee that any others will work.

Analog, true bypass and hand made one at a time in the republic of Akron Ohio.

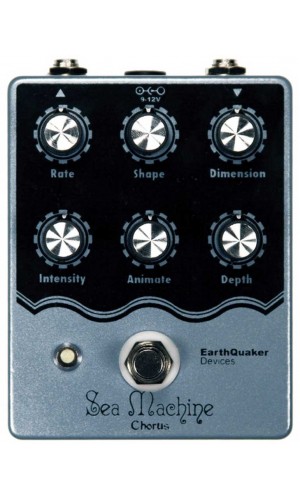

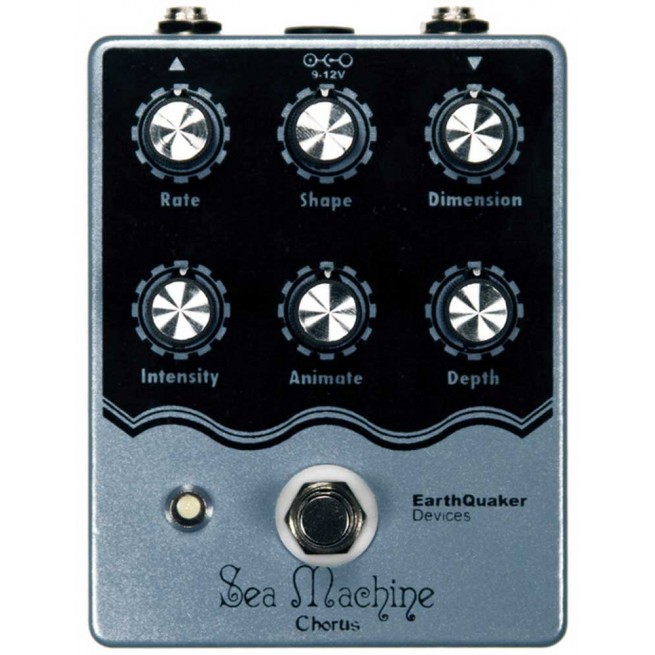

Earthquaker Devices Sea Machine Chorus

The Sea Machine is a chorus pedal with ultimate control over parameters rarely, if ever, seen in a chorus before. A hybrid of digital and analog circuitry with a slightly extended delay time allows it to really stand out and shimmer. Subtle warble, classic leslie, sea sick pitch bends, strangled aliens, stunted arpeggiations… there is something for everyone in the Sea Machine, even people who hate chorus. Designed to work well following fuzz, distortion or overdrive without getting muddy, loss of volume or breaking up (the Sea Machine has excellent headroom at both 9 & 12 volts). When engaged, the transparent buffer leaves the all analog dry signal unaltered and crystal clear. It can be powered from 9-12v DC, higher voltage yields a more intense modulation, slightly longer delay time with more chime and dimension. The Sea Machine is true bypass and made by human hands with the highest quality parts in lovely Akron, Ohio.

Controls

- Rate: Controls the peed of the LFO
- Shape: From soft triangle through hard square wave Dimension: Adds a slight slap-back at low levels, reverb-like ambiance at mid levels and an echo-resonance at max
-Intensity: Controls how much the LFO modulates the delay time
-Animate: Adjusts how far the pitch shifted signal swings, lower levels equals a tighter and more focused shift à la traditional chorus. As you increase the control a more wild and animated pitch shift begins to emerge.
- Depth: Determines how much modulated signal is blended in with the dry signal.
-Toggle Switch- Controls the direction of the sequence. All the way left is up, the sequence will continually repeat going up. In the middle is up/down, the sequence will continually repeat going up then back down. All the way right is down, the signal will continually repeat going down.

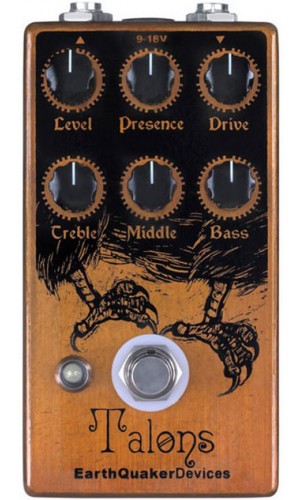

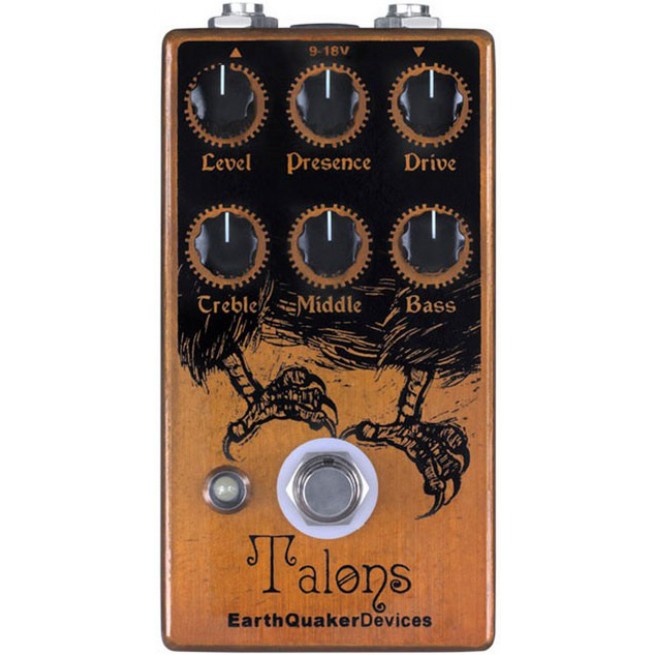

Earthquaker Devices Talons

Overdrive

The Talons is an ultra flexible dirt machine that can go from clean to crunch and everything in between with a swift turn of the gain control. Add to that a powerful active 3 band equalization sector and some top end contour via the presence control and you’ve got one versatile little buddy at your disposal. Unlike all our other overdrives, the Talons was not designed to emulate any specific sound or era. It can be glassy and open, scooped and chunky, gritty and wild, light and airy, drunk and unhinged… it will not disappoint you.

True Bypass and Handmade with sweet loving care in Akron, Ohio.

Controls

-Treble: Noon is flat, boost is clockwise from noon, cut is counter clockwise from noon.
-Middle: Noon is flat, boost is clockwise from noon, cut is counter clockwise from noon.
-Bass: Noon is flat, boost is clockwise from noon, cut is counter clockwise from noon.
-Presence: Adjusts the top end and upper mids to control the amount of “sizzle” in the dirt. Turn-clockwise for a brighter tone, counter clockwise to mellow it out.
-Gain: Preamp volume control. Controls the amount of dirt available, from clean to heavy crunch.
-Level: Master volume control. There is a lot of level on tap, please adjust accordingly.

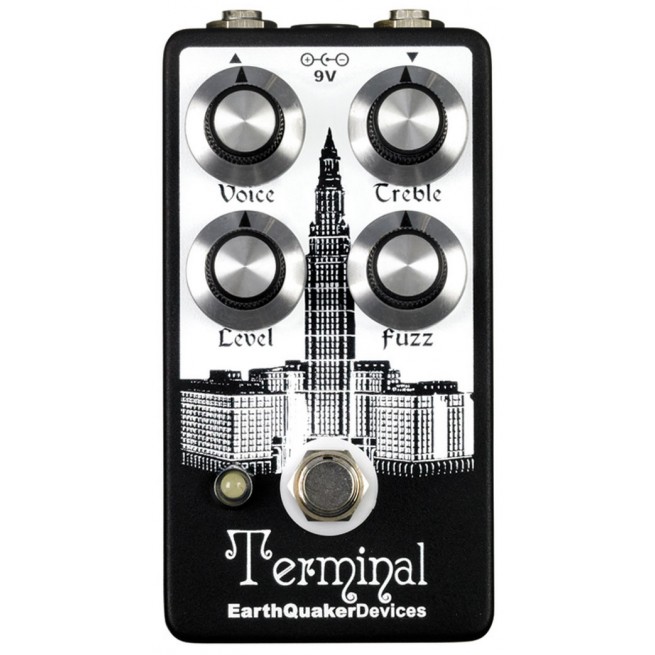

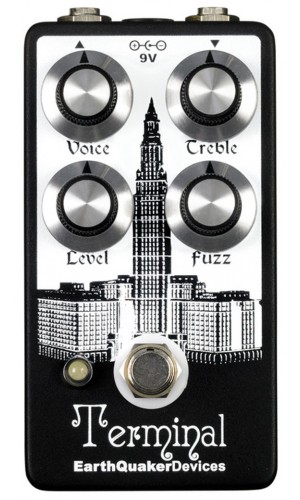

Earthquaker Devices Terminal

Destructive Fuzz Device

The Terminal fuzz is a blown out, busted and all around destructive fuzz device modeled after my old JAX fuzz. For those not in the know, the JAX fuzz is a re-branded Shin Ei Companion fuzz that is well loved for its buzzy sound. The Terminal takes this design three steps further by allowing control over the gain, fine tuning of the EQ and a massive adjustable volume boost. The Voice controls the upper and lower mid range determining the over all frequency response while the Treble adjusts the biting top end. The Fuzz control goes from a gritty “separated” drive to a pinched, searing grind. Between these three interactive controls you will find a wide range of blistering fuzz tones at your disposal. Not only does the terminal rip on guitar, it’s one of the best bass fuzz pedals we have ever heard. Seriously, it rules on bass! The Terminal fuzz has all archaic analog circuitry, true bypass switching and is made one at a time by real human beans in Akron, Ohio.

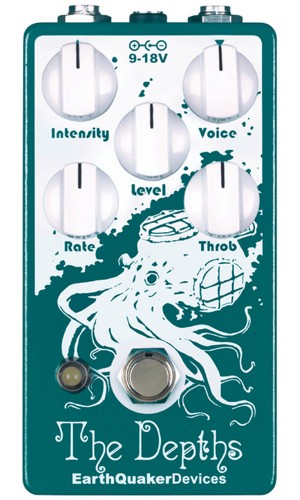

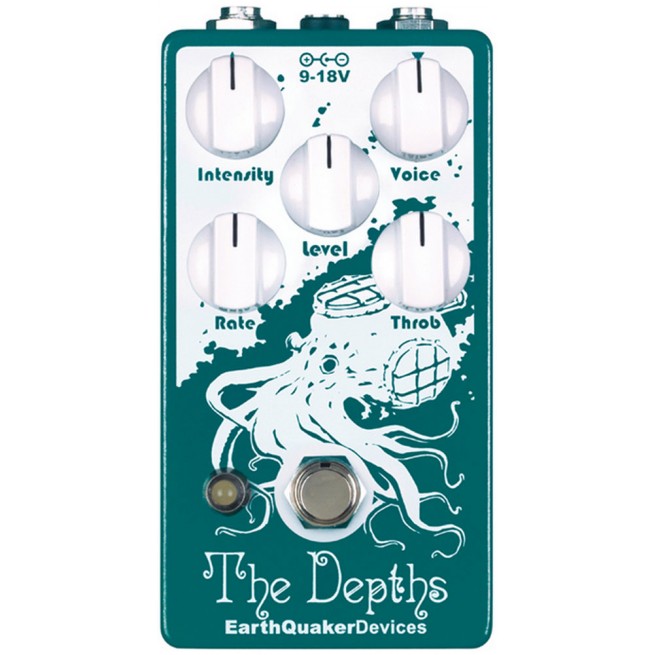

Earthquaker Devices The Depths

The Depths is our take on the classic optical vibe circuit. It creates a lush, phasing pulse which delivers a three-dimensional swirling sound. The Depths has been optimized to work well with all types of instrument, pickup types and to play well with dirt. With its “Voice” and “Throb” controls, The Depths can achieve sounds from thin and subtle to warm and deep and everything in between. The “Intensity” and “Rate” will go from a smooth, ultra-slow warble all the way to speedy, sharp bursts allowing you to get more than just the classic vibe sounds. The “Level” will allow you to boost the signal well above unity to make up for any perceived volume loss commonly found in vibe pedals. In addition to all that, The Depths can be powered by 9v for warmer tones or up to 18v for a stiffer tone with more headroom and sparkle.

Controls

Voice- Dials in the overall sound. Turn it clockwise for a fuller sound with more lows, bring it back for a thinner, more midrange focused tone.
Throb- This controls the low end pulse. It may not be immediately evident on the bridge pickup, but switch to the neck or add some dirt and it comes alive. All the way up for more throb, dial it back for less. Works best when the “Voice” is set to a warmer tone.
Intensity- This controls how subtle or intense the overall effect is. Counter clockwise from noon are the more subtle, classic sounds. Clockwise from noon are the more drastic and intense sounds.
Rate- Controls the speed of the effect. Counterclockwise for slow, clockwise for fast.
Level- Controls the volume of the effect. Unity is around 1 O’clock, everything above that is boost.

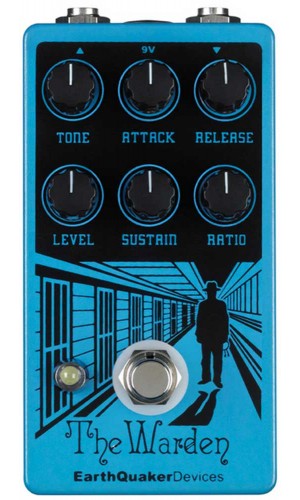

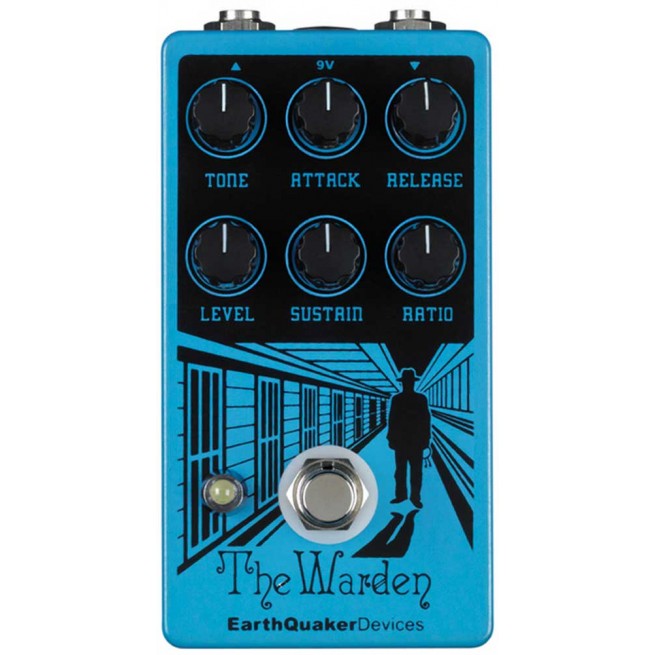

Earthquaker Devices The Warden

The Warden is an optical compressor with a feature set usually reserved for studio grade units. Built with high grade components and internally powered by 18v, The Warden has loads of gain and sustain on tap. With complete control over attack, release, sustain and ratio, The Warden will allow everything from a heavy squash with fast attack and release to “barely there” subtle compression. Optical compression has a reputation for having more character than a VCA or FET based compression and The Warden is no exception.

True Bypass and Handmade with sweet loving care in Akron, Ohio.

Controls

- Tone: This pedal was designed to slightly color your tone, the coloration can be dialed-in to your taste. Counter clockwise is treble cut, clockwise is treble boost. The tone is nearly flat around 11 O’Clock.
- Level: This controls the overall output and is affected by the sustain and ratio settings. There is no specific unity setting, adjust to taste when you find your perfect compression setting
- Sustain: This is the heart of The Warden. It controls how hot the signal is, which changes the dynamics of the compression. The Warden is a feedback style compressor, the hotter the signal, the more active the compression. Very little sustain= very little compression, less active attack and release and a cooler signal, Max sustain= heavy compression, longer sustain, hotter signal and more lively attack and release.
- Ratio: This determines how much the gain reduction affects the signal. All the way up is full compression and the compression is reduced as you turn this counter clockwise which allows more of the boosted, less compressed, signal to come through. There are no defined ratios here.
- Attack: This controls how quickly the compressor reacts and starts leveling the signal. All the way counter clockwise is a fast, nearly immediate reaction. Turning the attack clockwise slows the reaction time.
- Release: This controls how long it takes the signal to raise back up to the level determined by the sustain & ratio settings. All the way counter clockwise is a fast release and the release time slows as you turn it clockwise.

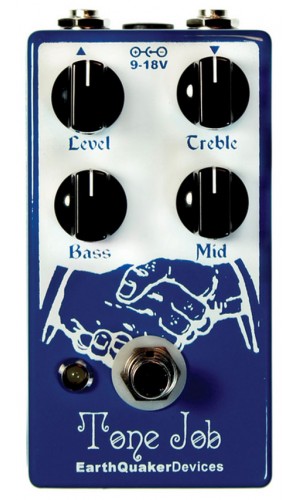

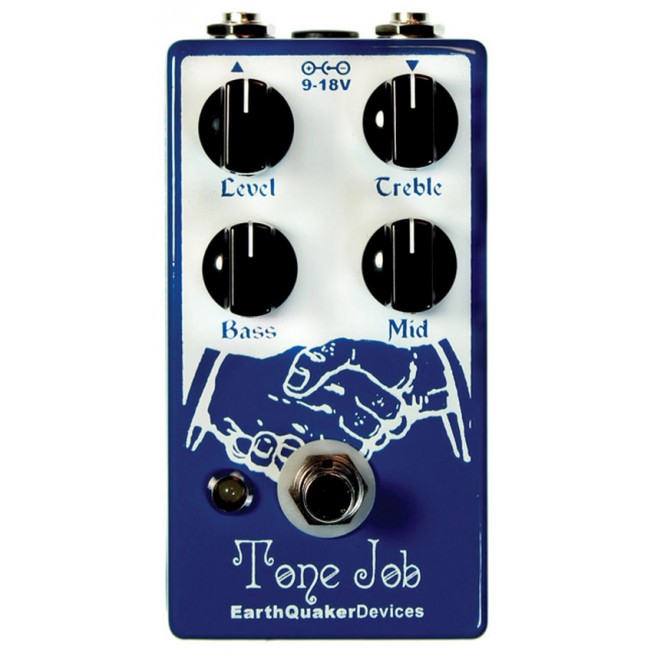

Earthquaker Devices Tone Job

EQ and Boost

The Tone Job is a complete tone enhancement tool designed around a stereo preamp to cover as much frequency range as possible. What does this mean for you, the user? It means it can handle a wide variety of frequencies from electrical guitars, bass guitar, synthesizer machines and just about anything else you can plug in. The treble, bass and middle controls will cut or boost up to 20db. In addition to that, the level control will boost the signal (post EQ) up to 5 times the input depending on where the dial is set. A simple, perfect pedal to place at the end of your effect chain to boost output and fine tune your tone or at the front of the chain to alter the character of your guitar and breath new life into tired old dirt.
